Equipment introduction

This equipment can use a whole box of charging battery, which is an automatic equipment for pasting highland barley paper with cylindrical battery. PLC controls the stepper motor and cylinder to complete the function of pasting highland barley paper to the electric core. The mechanical structure design is simple and elegant, and the system performance is stable. In the current market, it is one of the equipment with high cost performance for pasting highland barley paper with cylindrical battery. It can be used for all cylindrical batteries, and the mold replacement is simple and convenient.

Product parameters

Input voltage/power: single-phase 220V, 1000W, 50Hz



Boundary dimension: L * W * H1200 * 850 * 1650MM



Equipment air pressure: 0.4-0.6Mpa



Applicable cell: 32700



Equipment weight: 400KG



Cushion driving force: electric, variable frequency speed regulation



Feeding method: put 32700 electric core into the hopper and connect it to the automatic highland barley paper pasting machine



Material specification requirements: the maximum diameter of the coil is 350MM, and the inner diameter of the coil core

72-75MM, 100MM wide



Working efficiency: ≥ 80PPM



Artificial aging: 2-3 people can be saved



Appearance of face pad: outer diameter 17.8MM, inner diameter 9MM



Surface cushion material: highland barley paper or PVC

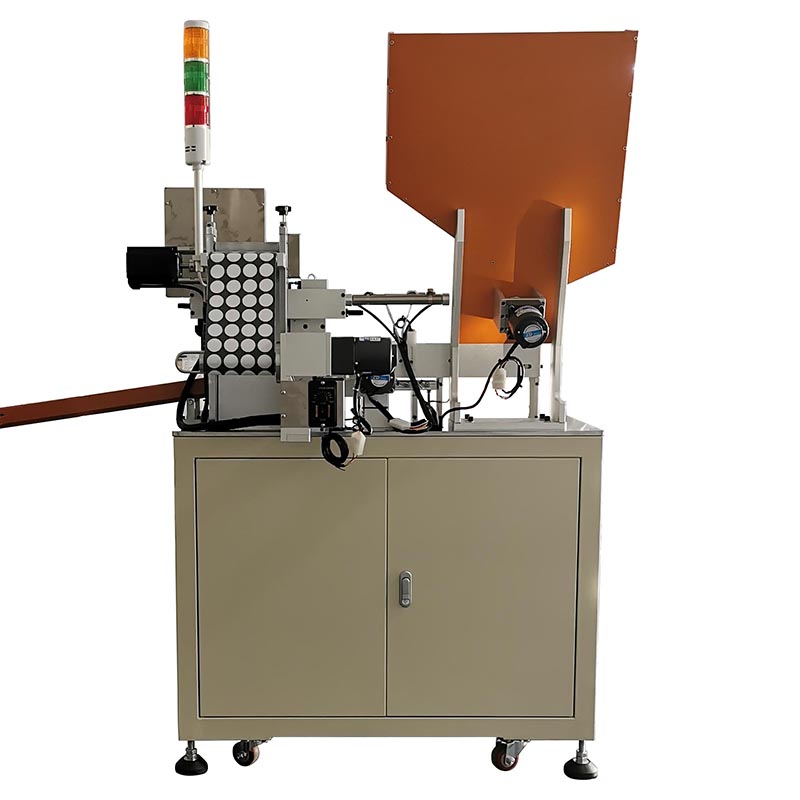

Equipment display
